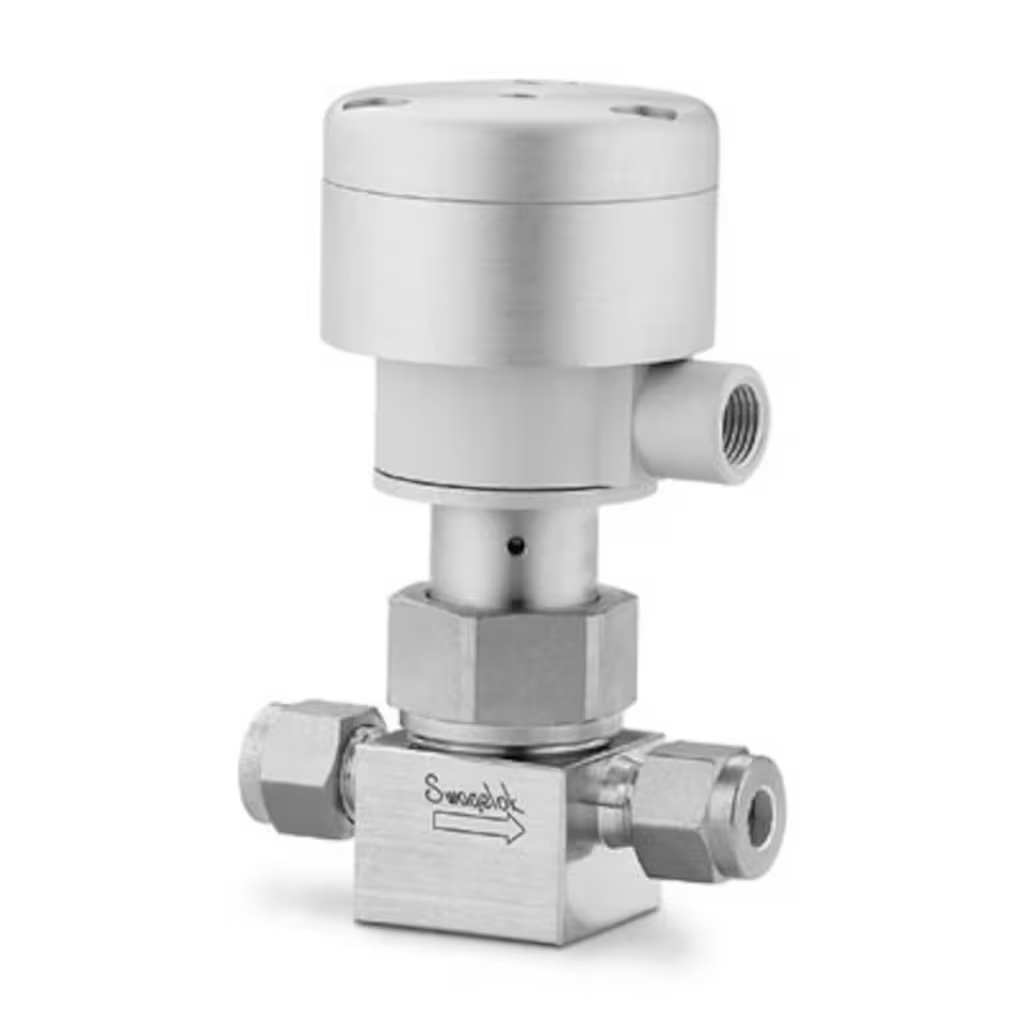

Stainless Steel Bellows Sealed Valve, Gasketed, PCTFE Stem Tip, 10 mm Swagelok Tube Fitting, SC-11 Cleaned, NC Actuator SS-10BK-MM-1C Swagelok®
$622.00
Part No: SS-10BK-MM-1C
Stainless Steel Bellows Sealed Valve, Gasketed, PCTFE Stem Tip, 10 mm Swagelok® Tube Fitting, Special Cleaning SC-11, with Normally Closed Spring Return actuator. The valve has a CV of 0.86 and maximum pressure of 125 PSIG at 200°F.
Product successfully added to the Quote List
Description
| Feature | Details |
|---|---|
| Part Number | SS-10BK-MM-1C |
| Material | 316 Stainless Steel |
| Connection 1 Size | 10 mm |
| Connection 1 Type | Swagelok® Tube Fitting |
| Connection 2 Size | 10 mm |
| Connection 2 Type | Swagelok® Tube Fitting |
| Cleaning Process | Special Cleaning and Packaging (SC-11) |
| Max Temperature | 200 (93) °F (°C) |
| Min Temperature | -20 (-28) °F (°C) |
| Actuator Operation Mode | Normally Closed Spring Return |
| CV Maximum | 0.86 |
| Stem Tip Material | PCTFE |
| Stem Type | Conical |
| Max Temperature Pressure Rating | 200°F @ 125 PSIG / 93°C @ 8.6 BAR |
